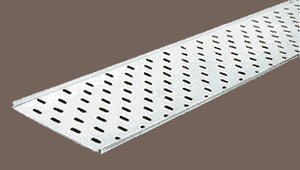

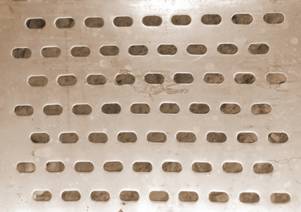

PERFORATED CABLETRAYS are fabricated out of
• Mild Steel conforming to I.S. 1079; 1994 /I.S. 513;1994
• Aluminium confirming to I.S 737; 1986 &
• Stainless Steel conforming to grade 304 & 316

Patny Perforated Cable Collar Type 'U' Type
IES Perforated Cable Collar Type 'U' Type

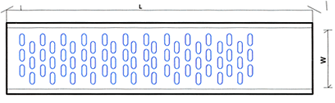

LOAD TABLE:



LIGHT DUTY PERFORATED CABLETRAYS

WIDTH
mm

HEIGHT
mm

THICK
mm

50

12

1.6

75

12

1.6

100

12

1.6

150

12

1.6

200

12/15

1.6

225

12/15

1.6

300

12/15

1.6

450

20

1.6/2

600

20/25

1.6/2

http://triowebsoftdemo.info/DEVELOP/IES/images/lighttry.gif

Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers’ consultants.



MEDIUM DUTY PERFORATED CABLETRAYS

WIDTH
mm

HEIGHT
mm

THICK
mm

50/60

20/25

2/2.5

100

20/25

2/2.5

150

20/25

2/2.5

200

20/25

2/2.5

225

20/25

2/2.5

300

20/25/50

2/2.5

450

20/25/50

2/2.5

600

20/25/50

2/2.5

http://triowebsoftdemo.info/DEVELOP/IES/images/heavyinw.gif

Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers’ consultants.



HEAVY DUTY PERFORATED CABLETRAYS

WIDTH
mm

HEIGHT
mm

THICK
mm

100

50/75

2/2.5

150

50/75/100

2/2.5

200

50/75/100

2/2.5

225

50/75/100

2/2.5

300

50/75/100

2/2.5

450

50/75/100

2/2.5

600

50/75/100

2/2.5

http://triowebsoftdemo.info/DEVELOP/IES/images/medmtray.gif

Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers’ consultants.


Perforated Type Cable Trays (PTCT)






Radius

Types of Bends

Degrees

300/450/600/1000 mm
or
as per the choice of customers

Horizontal, Vertical (Inside/Outside) Tees (Equal & Un-equal), Cross, Reducers

30, 45, 60, 90 for Bends
