LADDER TYPE CABLETRAY are fabricated out of
• Mild Steel Conforming to I.S. 1079; 1994 / I.S. 513; 1994
• Aluminium Conforming to I.S. 737; 1986 &
• Stainless Steel Conforming to grade 304 & 316

Patny Ladder Type Cable Trays
IES Ladder Type Cable Trays


Different Cross Sectional Details of Ladder Trays

Equal C Type Welded
Equal C Type Welded

New Bolted Type
New Bolted Type

Z Type
Z Type



The Ladder Type Cable Trays are manufactured in the width from 150 mm to 900 mm: having Height from 50 mm to 150 mm and the Thickness from 16 SWG to 10 SWG with all accessories. This tray consists of two longitudinal side rails connected by individual transverse members.



Tray width (W)

Runner
Height (H)

Runner Collar (C)

Rung Size

Rungs Interval

Rung Slot Size

150 mm

or


1000 mm

50 mm

or

120 mm

15 mm

or


45 mm

35x15 mm

40x20 mm


50x20 mm

250 mm

or


300 mm

20x10 mm Width Spacing 10 mm/15 mm gap

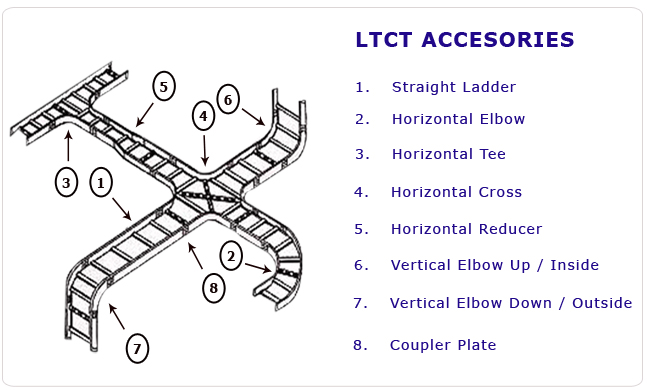

Ladder Type Cable Trays (LTCT) Accessories

90 Horizontal Elbow
90 Horizontal Elbow

90 Vertical Outside Elbow
90 Vertical Outside Elbow

90 Vertical Inside Elbow
90 Vertical Inside Elbow

Horizontal Cross
Horizontal Cross









Horizontal Tee
Horizontal Tee

Equal Reducer
Equal Reducer

Left Hand Reducer
Left Hand Reducer

Right Hand Reducer
Right Hand Reducer



Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers consultants

Radius

Types of Bends

Degrees

300/450/600/1000 mm
or
as per the choice of customers

Horizontal, Vertical (Inside/Outside) Tees (Equal & Un-equal), Cross, Reducers

30, 45, 60, 90 for Bends
